Monitoring OpenShift

Monitoring GPU

Monitoring Nvidia GPU devices

Installing collection

Pre-requirements

If in your cluster not all nodes have GPU devices attached, label them similarly to

1oc label nodes <gpu-node-name> hardware-type=NVIDIAGPU

The DaemonSet that we use below rely on this label.

Nvidia-SMI DaemonSet

We use the nvidia-smi tool to collect metrics from the GPU devices. You can find documentation for this tool at https://developer.nvidia.com/nvidia-system-management-interface. We also use a set of annotations to convert the output from this tool into an easily parsable CSV format, which helps us configure field extraction with Splunk.

Create a file nvidia-smi.yaml and save it with the following content:

 1apiVersion: apps/v1
 2kind: DaemonSet
 3metadata:
 4  name: collectorforopenshift-nvidia-smi
 5  namespace: collectorforopenshift
 6  labels:
 7    app: collectorforopenshift-nvidia-smi
 8spec:
 9  updateStrategy:
10    type: RollingUpdate
11
12  selector:
13    matchLabels:
14      daemon: collectorforopenshift-nvidia-smi
15
16  template:
17    metadata:
18      name: collectorforopenshift-nvidia-smi
19      labels:
20        daemon: collectorforopenshift-nvidia-smi
21      annotations:
22        collectord.io/logs-joinpartial: 'false'
23        collectord.io/logs-joinmultiline: 'false'
24        # remove headers
25        collectord.io/logs-replace.1-search: '^#.*$'
26        collectord.io/logs-replace.1-val: ''
27        # trim spaces from both sides
28        collectord.io/logs-replace.2-search: '(^\s+)|(\s+$)'
29        collectord.io/logs-replace.2-val: ''
30        # make a CSV from console presented line
31        collectord.io/logs-replace.3-search: '\s+'
32        collectord.io/logs-replace.3-val: ','
33        # empty values '-' replace with empty values
34        collectord.io/logs-replace.4-search: '-'
35        collectord.io/logs-replace.4-val: ''
36        # nothing to report from pmon - just ignore the line
37        collectord.io/pmon--logs-replace.0-search: '^\s+\d+(\s+-)+\s*$'
38        collectord.io/pmon--logs-replace.0-val: ''
39        # set log source types
40        collectord.io/pmon--logs-type: openshift_gpu_nvidia_pmon
41        collectord.io/dmon--logs-type: openshift_gpu_nvidia_dmon
42    spec:
43      # Make sure to attach matching label to the GPU node
44      # $ oc label nodes <gpu-node-name> hardware-type=NVIDIAGPU
45      # nodeSelector:
46      #   hardware-type: NVIDIAGPU
47      hostPID: true
48      containers:
49      - name: pmon
50        image: nvidia/cuda:latest
51        args:
52          - "bash"
53          - "-c"
54          - "while true; do nvidia-smi --list-gpus | cut -d':' -f 3 | cut -c2-41 | xargs -L4 echo | sed 's/ /,/g' | xargs -I {} bash -c 'nvidia-smi pmon -s um --count 1 --id {}'; sleep 30 ;done"
55      - name: dmon
56        image: nvidia/cuda:latest
57        args:
58          - "bash"
59          - "-c"
60          - "while true; do nvidia-smi --list-gpus | cut -d':' -f 3 | cut -c2-41 | xargs -L4 echo | sed 's/ /,/g' | xargs -I {} bash -c 'nvidia-smi dmon -s pucvmet --count 1 --id {}'; sleep 30 ;done"

Apply this DaemonSet to your cluster with

1oc apply -f nvidia-smi.yaml

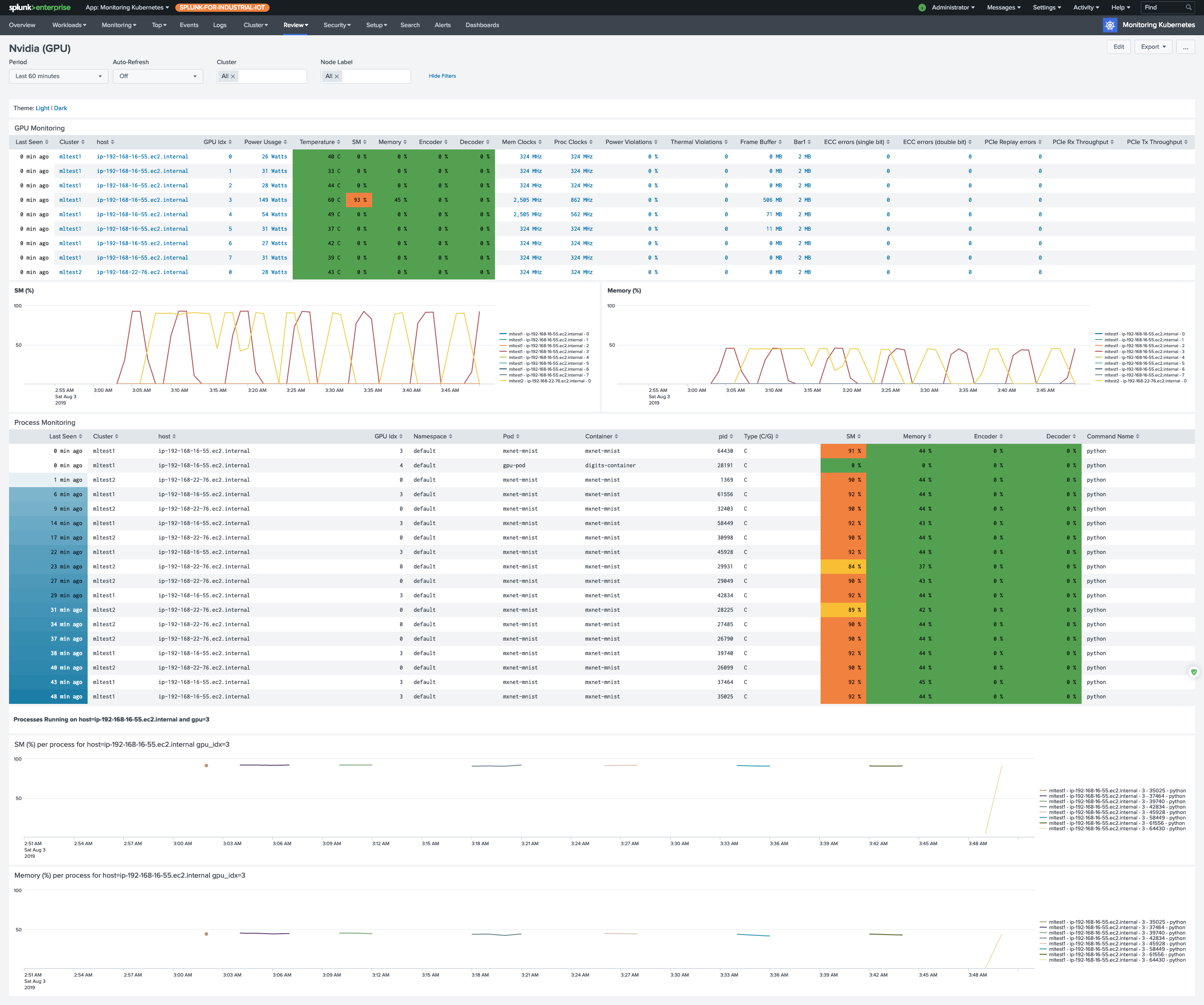

With version 5.11, you should see the data in the dashboard.

NVIDIA (GPU)
